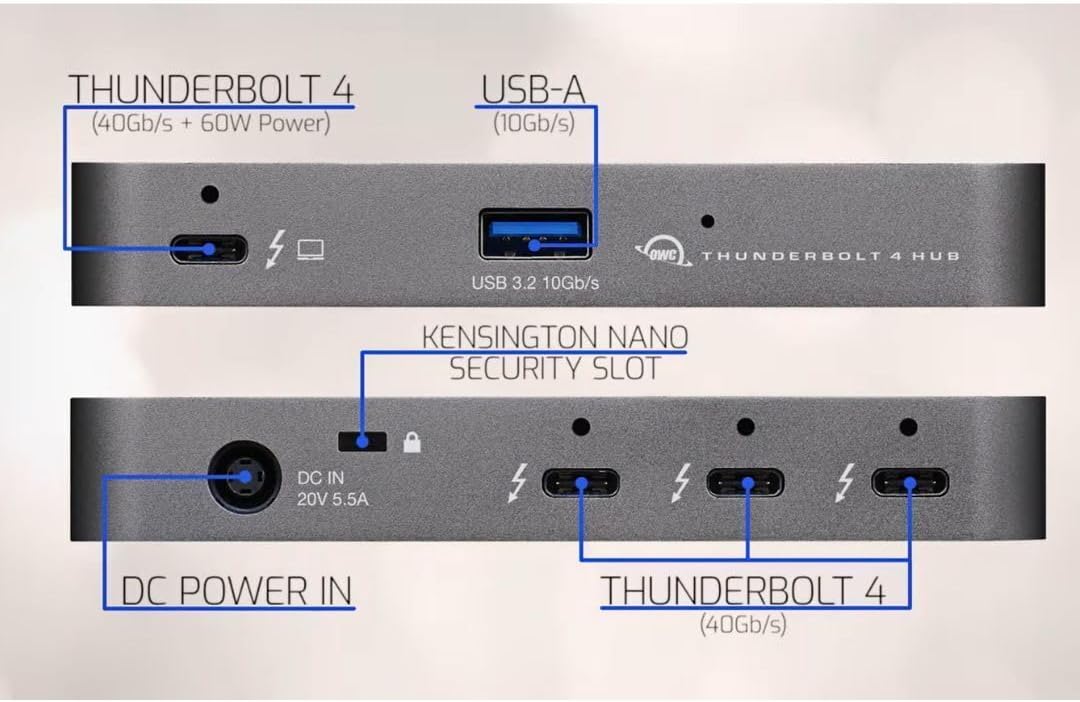

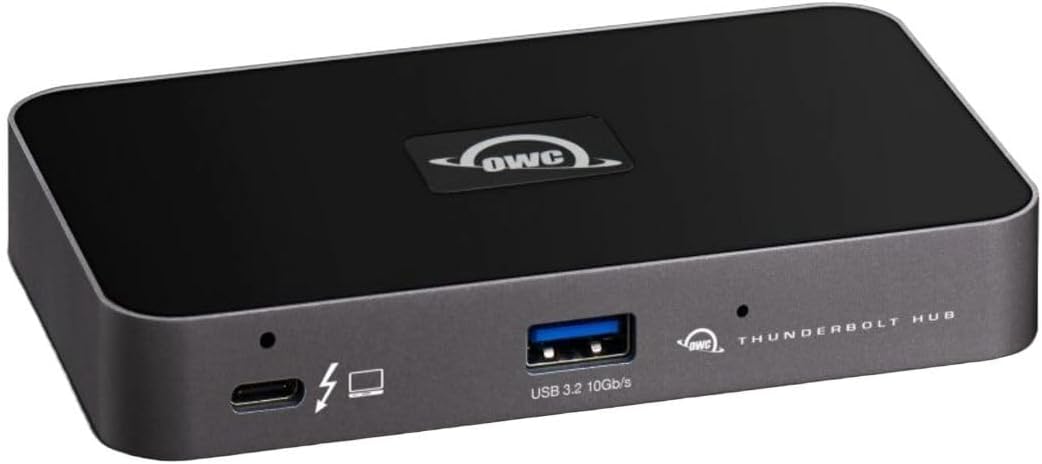

OWC Thunderbolt Hub with Three Thunderbolt 4 Ports and One USB Port

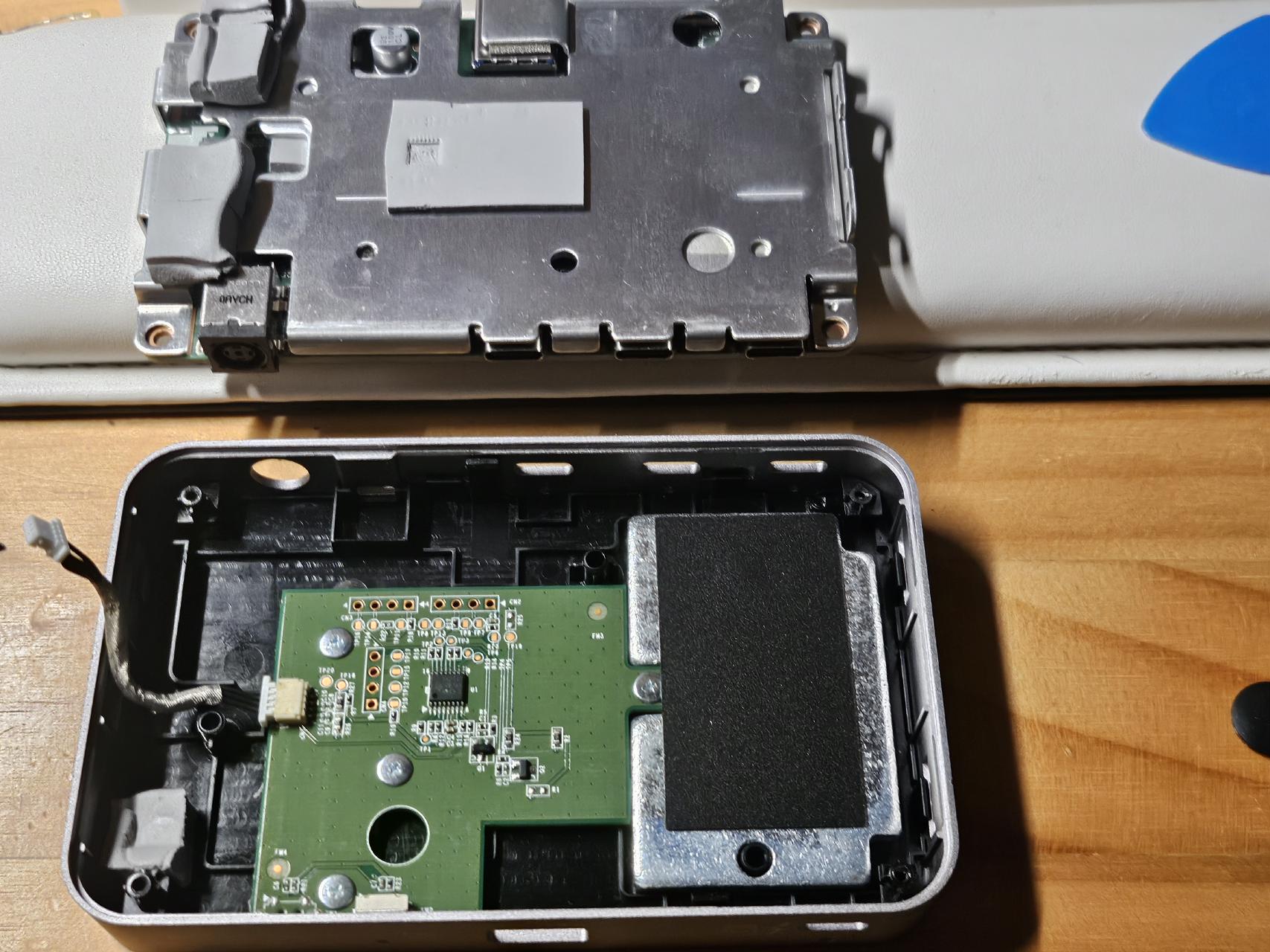

PCB

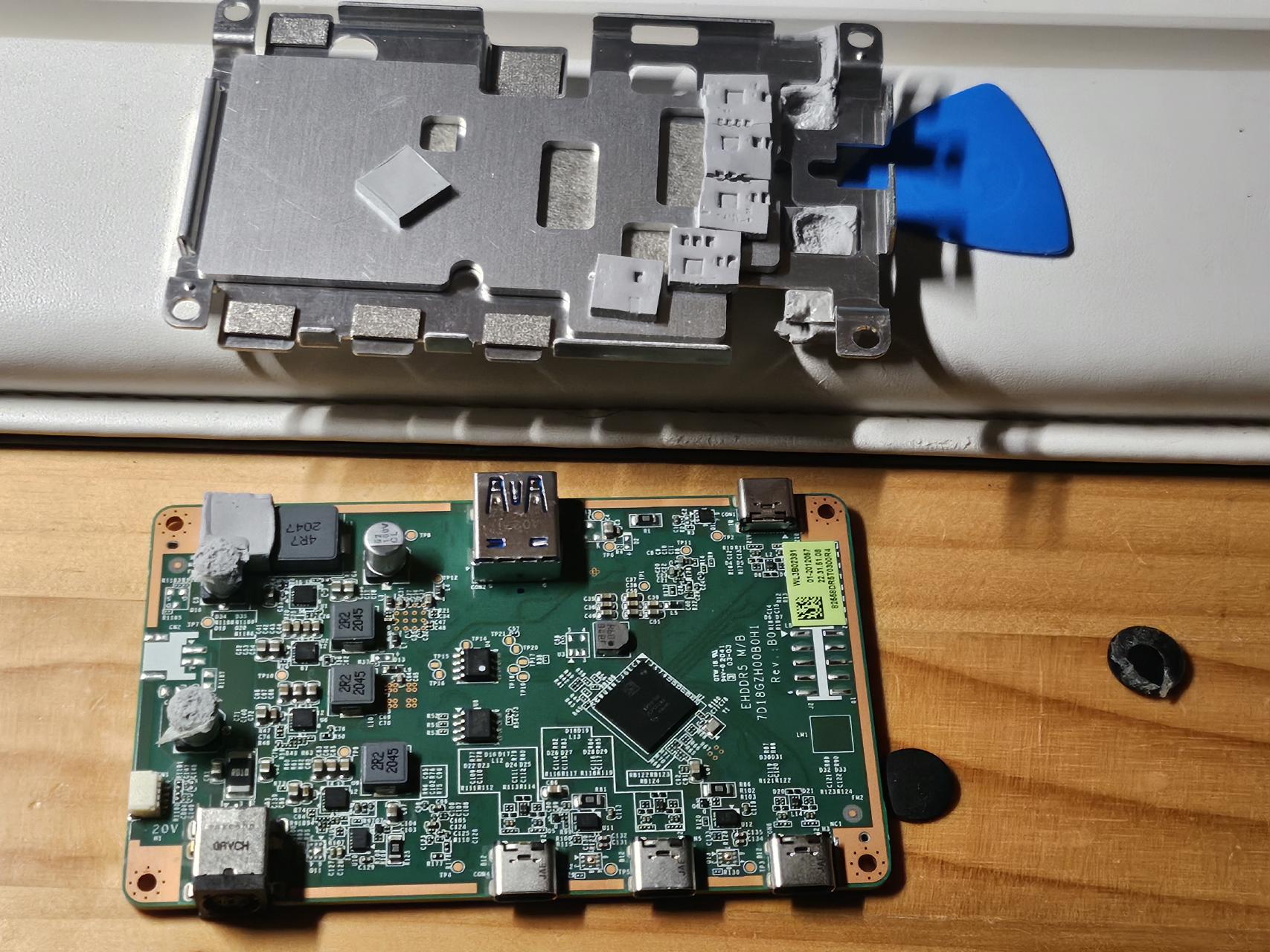

PCB1-Front

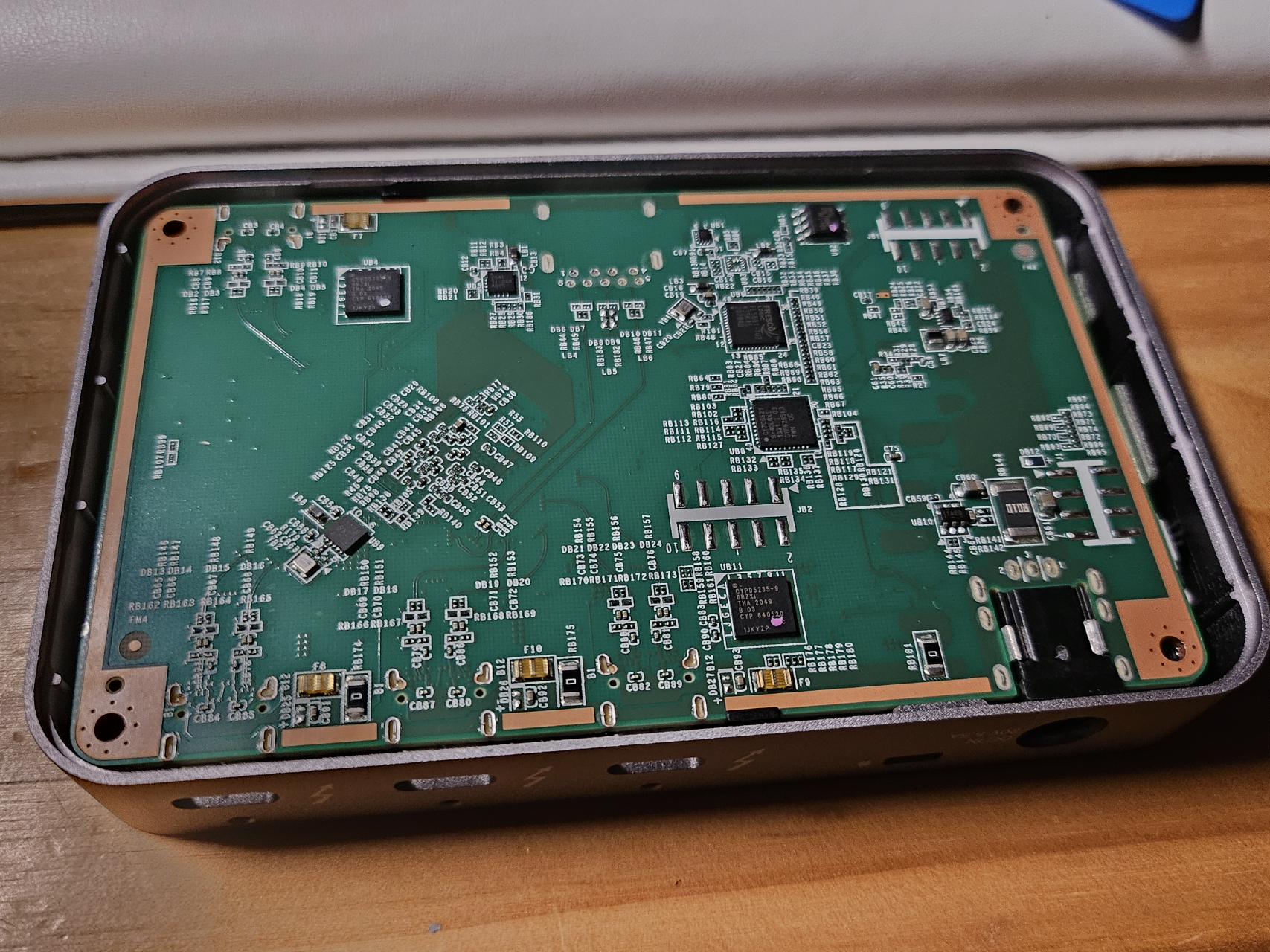

PCB1-Back

PCB2-Front

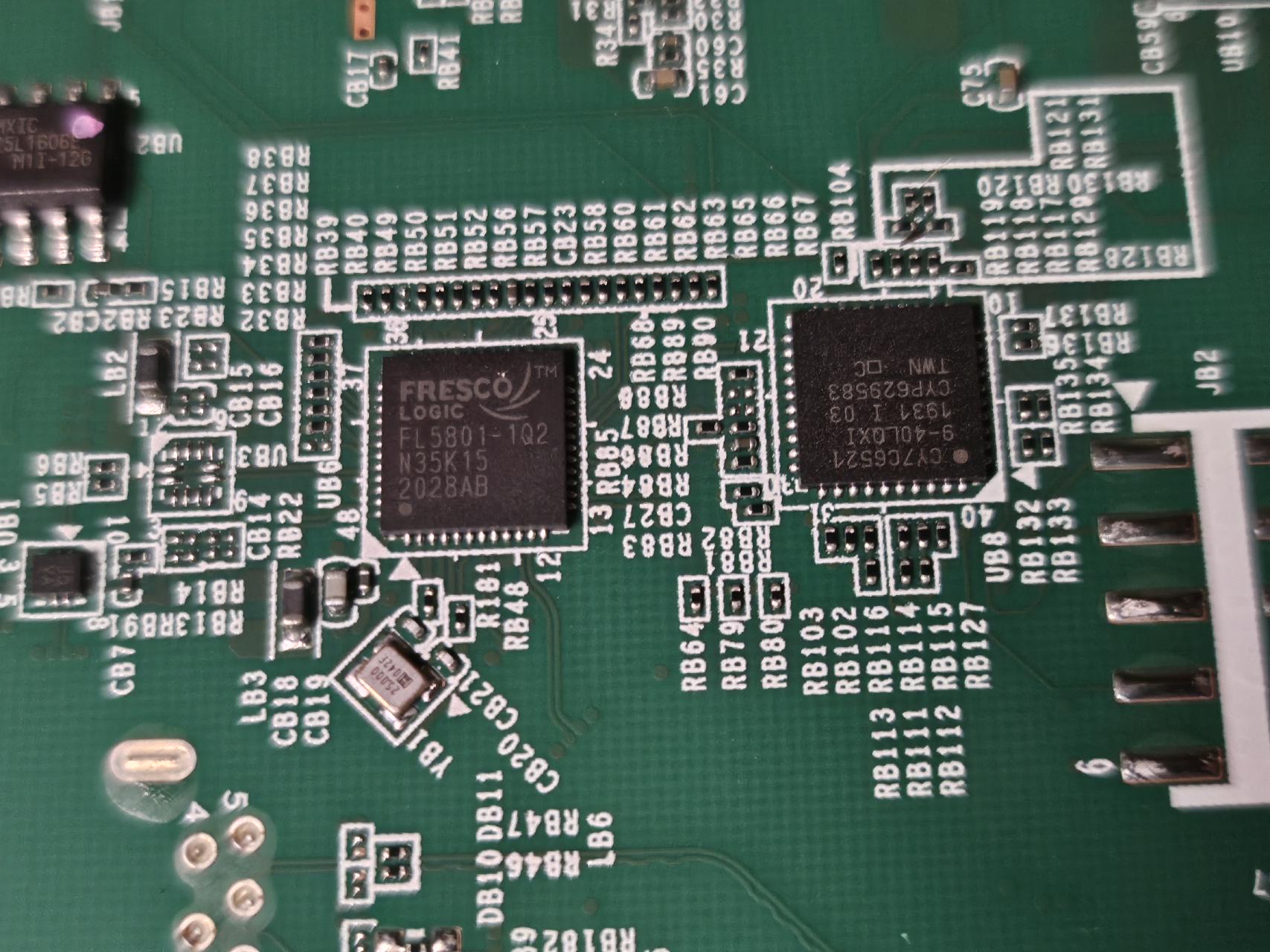

Chips

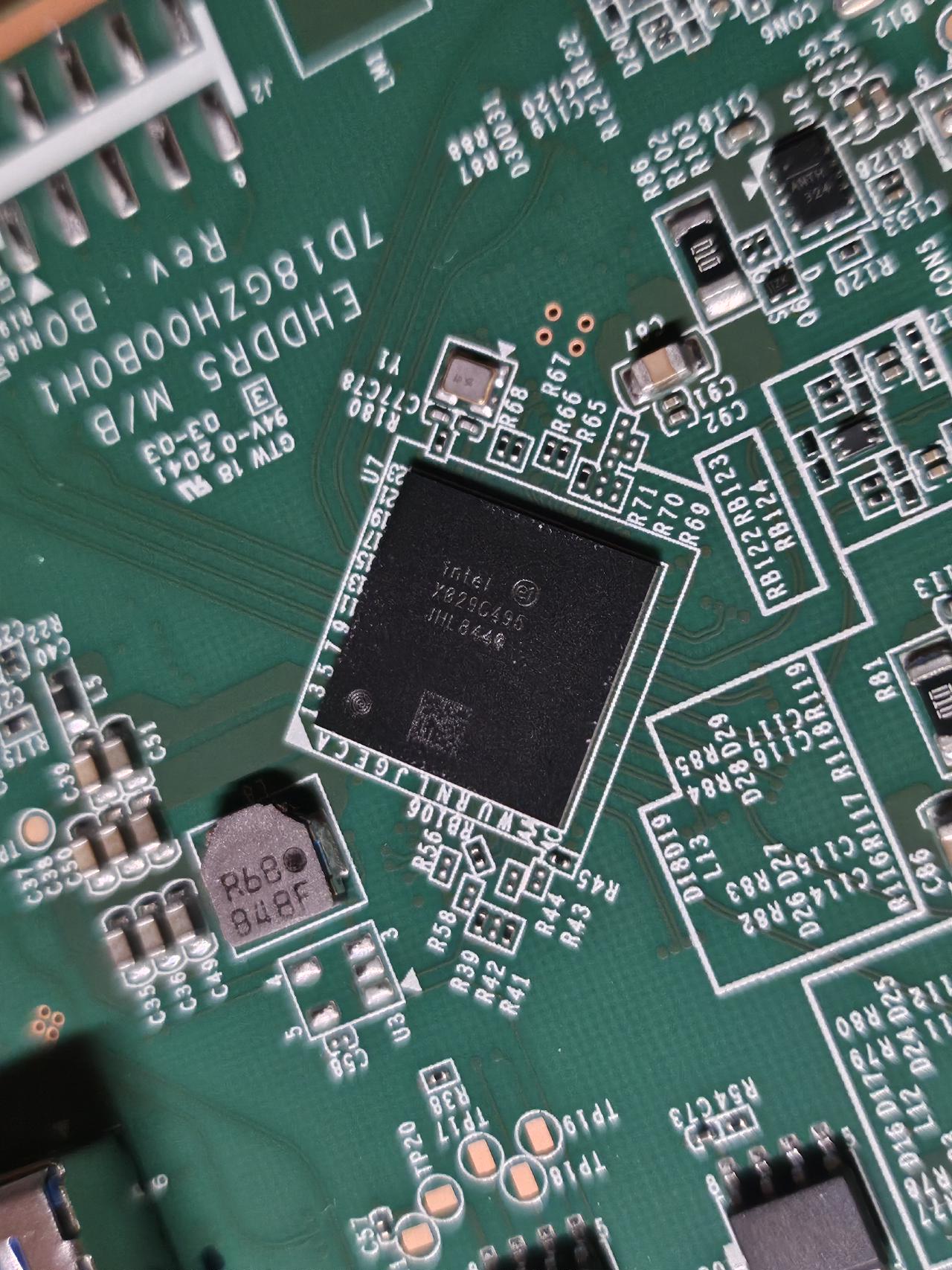

Intel® JHL8440 Thunderbolt™ 4 Controller

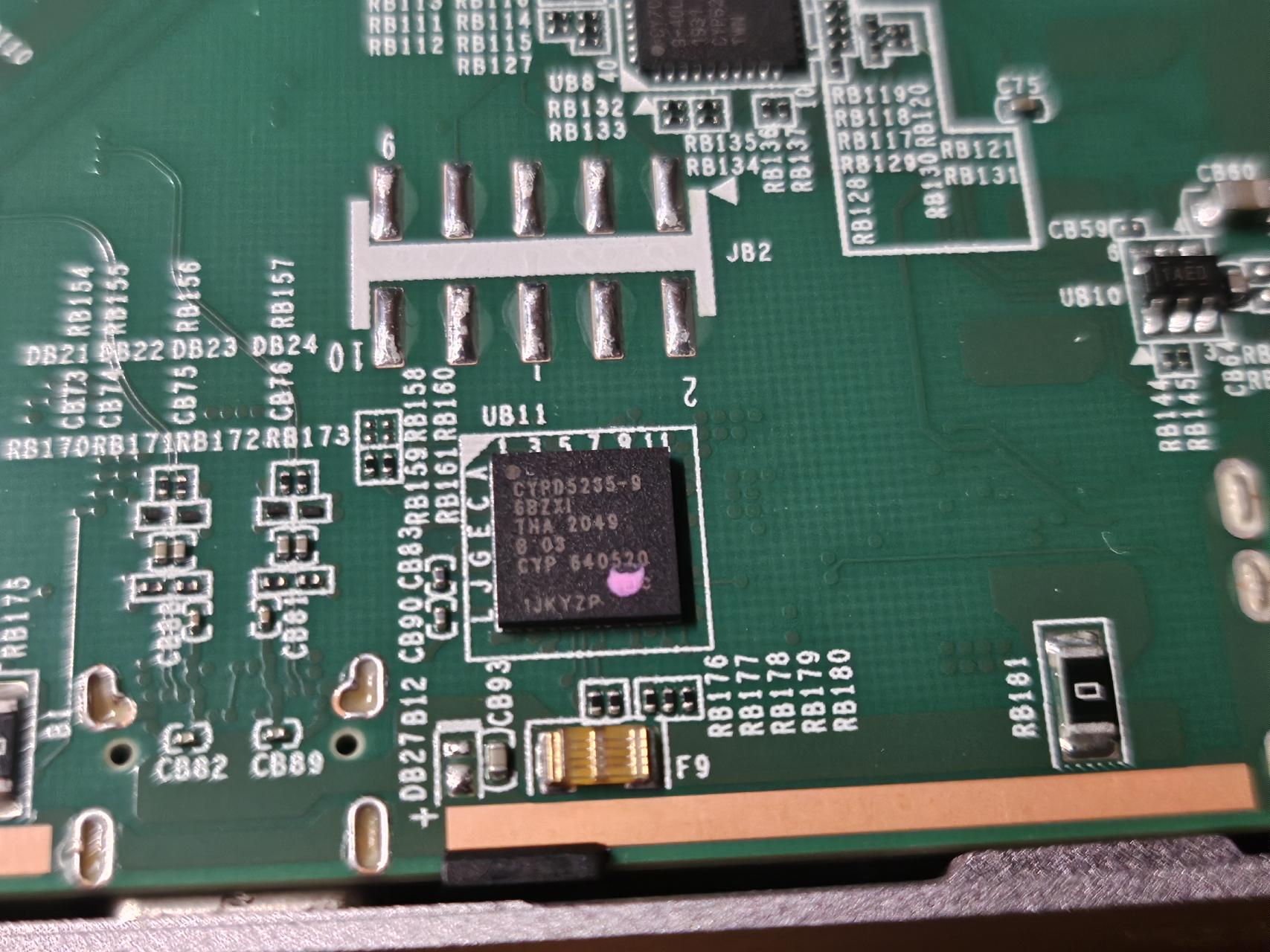

CYPD5235: USB Type-C Port Controller

Parade FL5801: 5-Port USB2 Port Expander for TBT4 Docks

Note: JHL8440 only extends THUNDERBOLT at all ports. Add this to support USB2.0 feature.

infineon CY7C6521: USB-Serial Dual Channel (UART/I2C/SPI) Bridge with CAPSENSE™ and BCD

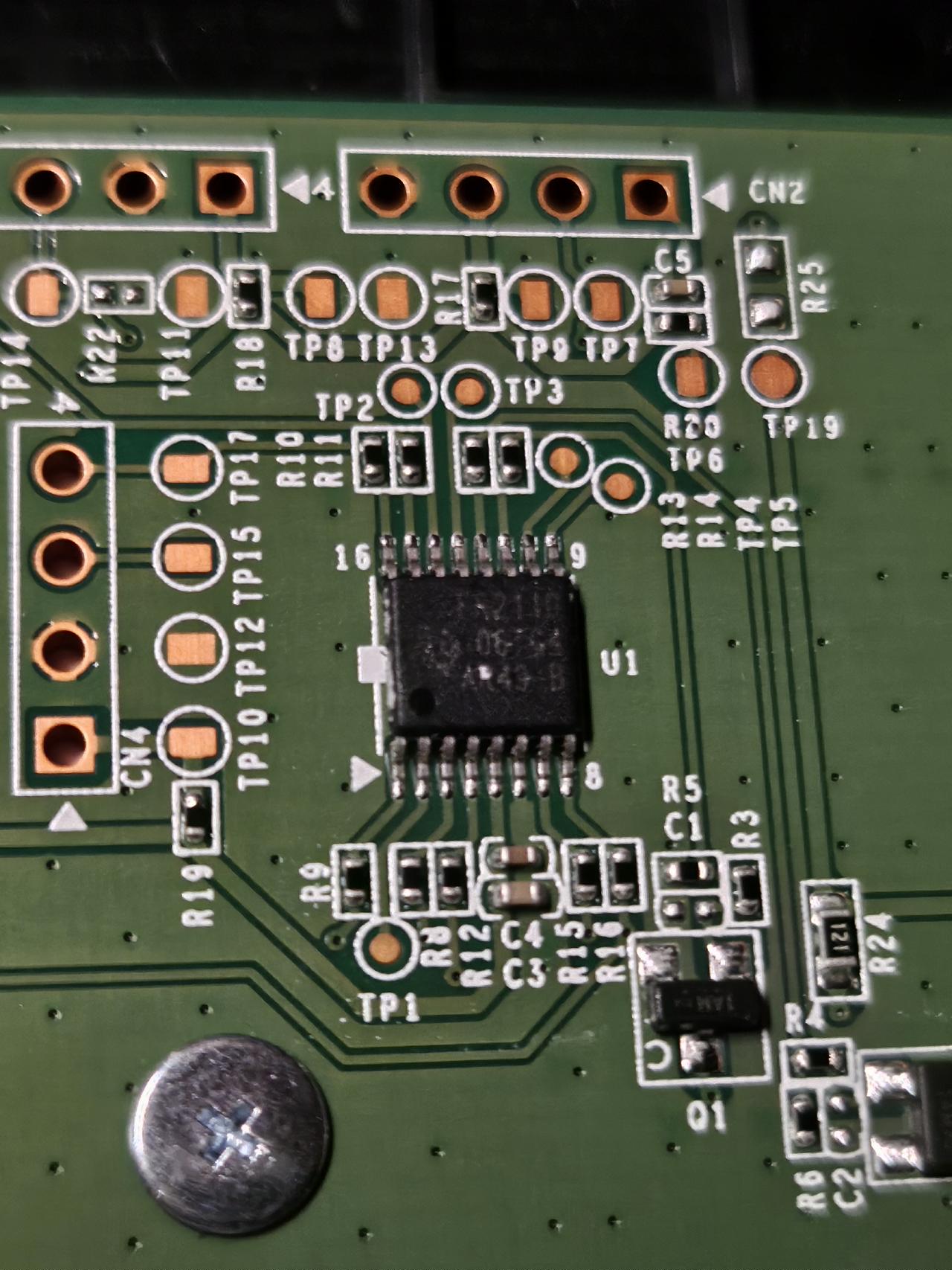

TI MSP430FR2110: 16 MHz MCU with 2KB FRAM, 1KB SRAM, comparator, 10-bit ADC, UART/SPI, timer.

Note: Interact with JHL8440, BLUE LED for CONNECTED, WHITE for STANDBY.

Notes

Intel didn’t make full pcie3.0x4 thunderbolt 4 controllers. So there’s only TBT3/USB4/TBT5 SSD/GPU docks:

• TBT3  ~3100MBps
• USB4 ~3500MBps
• TBT5 ~6400MBps

For Thunderbolt 4 Dock with SSD/PCIE support, needs to be JHL8440 TBT HUB + JHL 7440 TBT3 controller. Expensive&sucks.

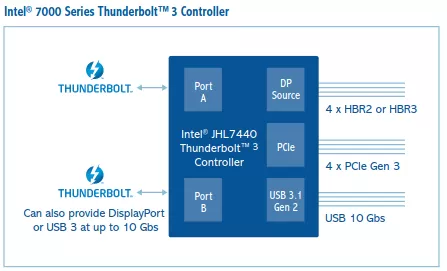

JHL7440 TBT3 controller:

TBT daisy chain, USB3 10Gbps, PCIE3.0x4, 4xHBR2 DP
